PROFESSIONAL WALL SAW

CONCRETE WALL SAW BLADES

Diameter Inch

Mounting Pattern

Select the mounting pattern that matches your wall saw. Other mounting patterns are available upon request.

Arbor
Select a mounting pattern

Segment Height
12 mm (.472″)

Segment Width

Quantity

Series:
WS100

Select a diameter, mounting pattern, and segment width.

Description:

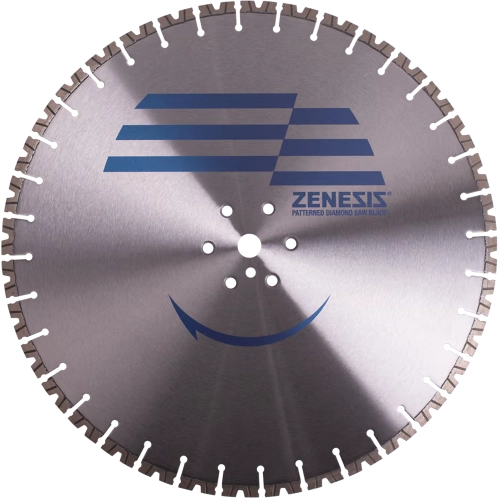

The WS100 Professional Series ZENESIS™ V-Notch Wall Saw Blade represents the highest level of wall sawing performance for hard and reinforced concrete. Advanced ZENESIS™ patterned V-Notch segments provide superior cooling, faster cutting speeds, and extended blade life while maintaining exceptional cutting performance throughout the life of the blade. Available in four bond specifications (Medium Soft, Medium, Medium Hard, and Hard) to optimize performance for varying concrete conditions. Manufactured in 35CON performance grade for maximum productivity in professional wall sawing applications.

FEATURES

Discover all features and benefits

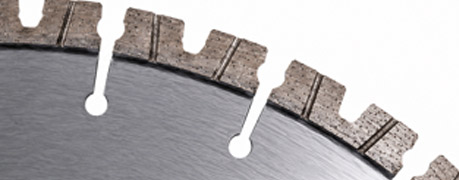

ZENESIS™ V-NOTCH PATTERN

Advanced patterned diamond technology provides controlled diamond distribution for consistent cutting performance.

FAST CUTTING CONCRETE

Engineered for high-performance cutting in full range of materials soft, hard with reinforced concrete using professional wall saw blades.

ZENESIS™ DIAMOND ALIGNMENT

Conventional diamond tools provide either cutting speed or tool life, but rarely both. With ZENESIS™, there is no need to compromise.

SPECIFICATIONS

Get full product details and all technical specifications

PRODUCT DATA

Performance level:
Professional
Series:
WS100
Application:
Concrete
Assembly:
Brazed
Blade configuration:
Segmented
Segment height:
12mm (.472)
Coolant:
Wet
Mounting pattern:
Longyear (LYBHP)
GDM (GDMBHP)
Arbor diameter:
1″ Pin hole or 1-3/8″
Equipment:
Hydraulic wall saw
Power range:
18 – 50HP
Manufactured:
Made in USA
